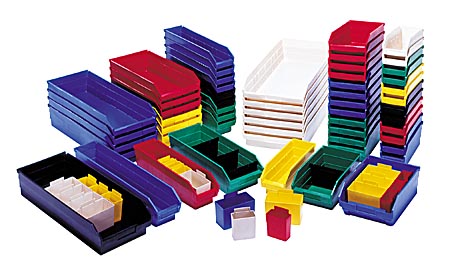

Shelf Bin Series |
| Outside Dimensions in Inches | Inside Dimensions in Inches | CTN. QTY. |
CTN. WGT. |
DIVIDER MODEL NO. |
No. of Bin Cups Per Bin | ||||||
| Model No. | L" | W" | H" | L" | W" | H" | QBC 111 | QBC 112 | |||
| QSB 100 | 11-7/8 | 2-3/4 | 4 | 10-3/4 | 2-1/8 | 3-7/8 | 36 | 15 lbs | - | 3 | 0 |
| QSB 101 | 11-7/8 | 4-1/8 | 4 | 10-3/4 | 3-1/4 | 3-7/8 | 36 | 15 lbs | DSB 101 | 6 | 2 |
| QSB 102 | 11-7/8 | 6-5/8 | 4 | 10-3/4 | 5-1/2 | 3-7/8 | 30 | 16 lbs | DSB 102 | 9 | 4 |
| QSB 107 | 11-7/8 | 8-1/8 | 4 | 10-3/4 | 7-1/2 | 3-7/8 | 20 | 14 lbs | DSB 107 | 12 | 4 |
| QSB 109 | 11-7/8 | 11-1/8 | 4 | 10-3/4 | 10-3/8 | 3-7/8 | 8 | 8 lbs | DSB 109 | 18 | 6 |
| QSB 103 | 17-7/8 | 4-1/8 | 4 | 16-3/8 | 3-1/4 | 3-7/8 | 20 | 15 lbs | DSB 103 | 9 | 3 |
| QSB 104 | 17-7/8 | 6-5/8 | 4 | 16-3/8 | 5-1/2 | 3-7/8 | 20 | 18 lbs | DSB 104 | 15 | 6 |
| QSB 108 | 17-7/8 | 8-1/8 | 4 | 16-3/8 | 7-1/2 | 3-7/8 | 10 | 12 lbs | DSB 108 | 19 | 6 |
| QSB 110 | 17-7/8 | 11-1/8 | 4 | 16-3/8 | 10-3/8 | 3-7/8 | 8 | 11 lbs | DSB 110 | 29 | 9 |
| QSB 105 | 23-7/8 | 4-1/8 | 4 | 22-1/4 | 3-1/4 | 3-7/8 | 16 | 15 lbs | DSB 105 | 13 | 4 |
| QSB 106 | 23-7/8 | 6-5/8 | 4 | 22-1/4 | 5-1/2 | 3-7/8 | 8 | 12 lbs | DSB 106 | 21 | 8 |
| QSB 114 | 23-7/8 | 8-1/8 | 4 | 22-1/4 | 7-1/2 | 3-7/8 | 6 | 9 lbs | DSB 114 | 24 | 8 |
| QSB 116 | 23-1/8 | 11-1/8 | 4 | 22-1/4 | 10-3/8 | 3-7/8 | 6 | 9 lbs | DSB 116 | 35 | 16 |
