Protect your employees and your equipment with our rugged Barrier Rails.
Now you can add an extra measure of protection for your machinery, in-plant offices, aisle ways, storage areas, and more, with the new Barrier Rail from W.A. Schmidt, Inc.
  • Inexpensive way to protect machinery and workforce
  • Fast shipment and quick assembly speed installation
  • Standard sizes are easy to specify, install and add on
  • All structural design ensures maximum protection

Tough Construction
The Barrier Rail system features rails and posts made of ASTM A-36 structural steel, for the added safety that cold-rolled steel products simply can't deliver. Schmidt's Barrier Rail is reasonably priced and available for fast delivery. Schmidt's unique design is engineered to retain the highest standards of strength and durability without the high cost.



Item Description Stock No.
POST 16" high for single rail
30" high for single or double rail
44" high for single, double or triple rail
RAILS 4 ft. rail
6 ft. rail
8 ft. rail
10 ft. rail
BR 4
BR 6
BR 8
BR 10
FLARED END 14" high for 16" post
28" high for 30" post
42" high for 44" post
FE 14
FE 24
FE 28
FE 42

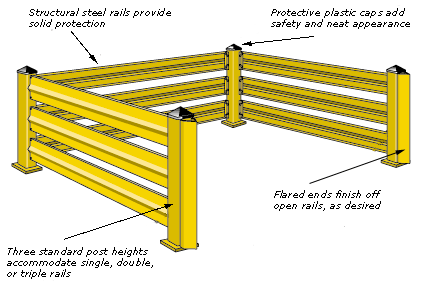

Standardized components are used for simple assembly and future expandability. A single post design meets all requirements for straight sections as well as for left or right turns. The rail sections can be easily field-cut for re-use if shorter lengths are required in the future. Use the table to order standard components in any combination. Every system comes complete with all mounting hardware for quick installation by your plant personnel. Schmidt can also provide factory-trained installers when required. All posts include protective plastic caps. Steel components are safety yellow.
